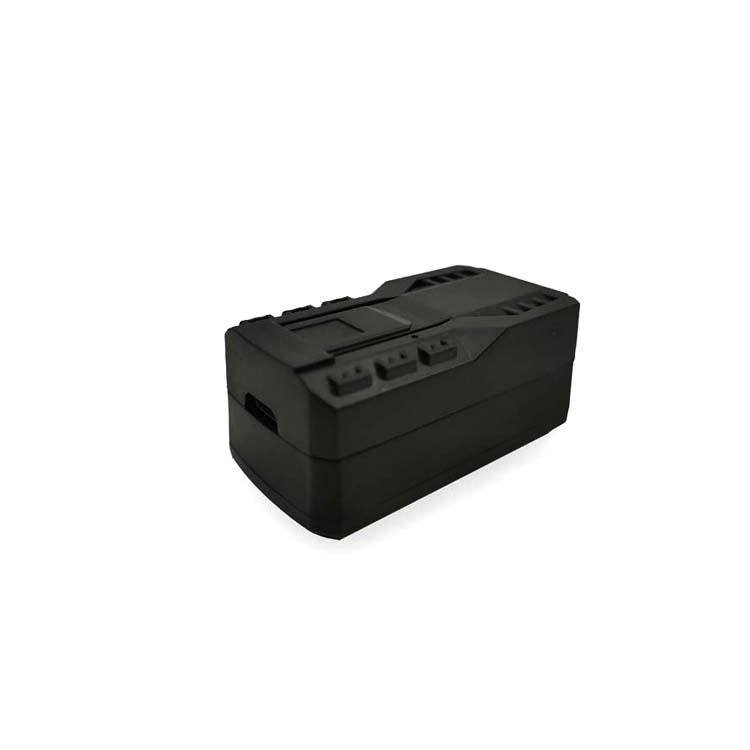

Live Location Tracking Real Time Gps Tracker with Audio

Smallest Live Location Tracking Real Time Gps Tracker with Audio Listening Feature

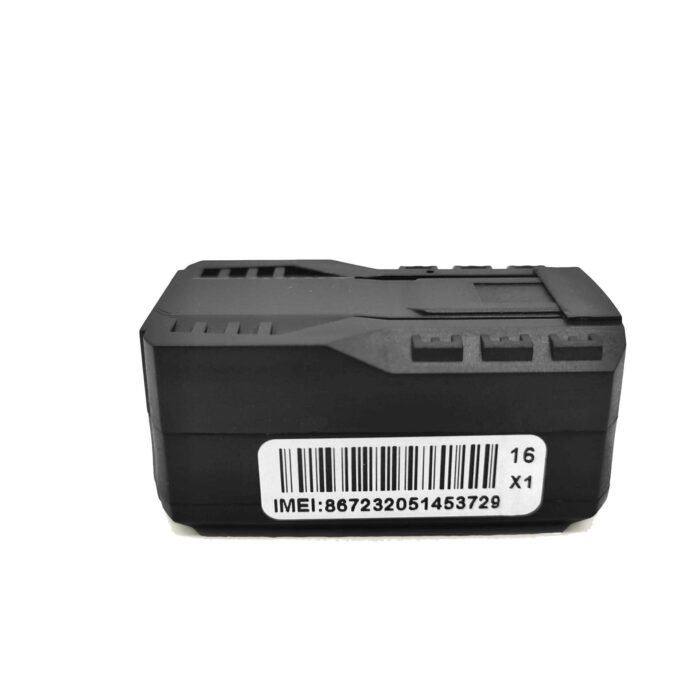

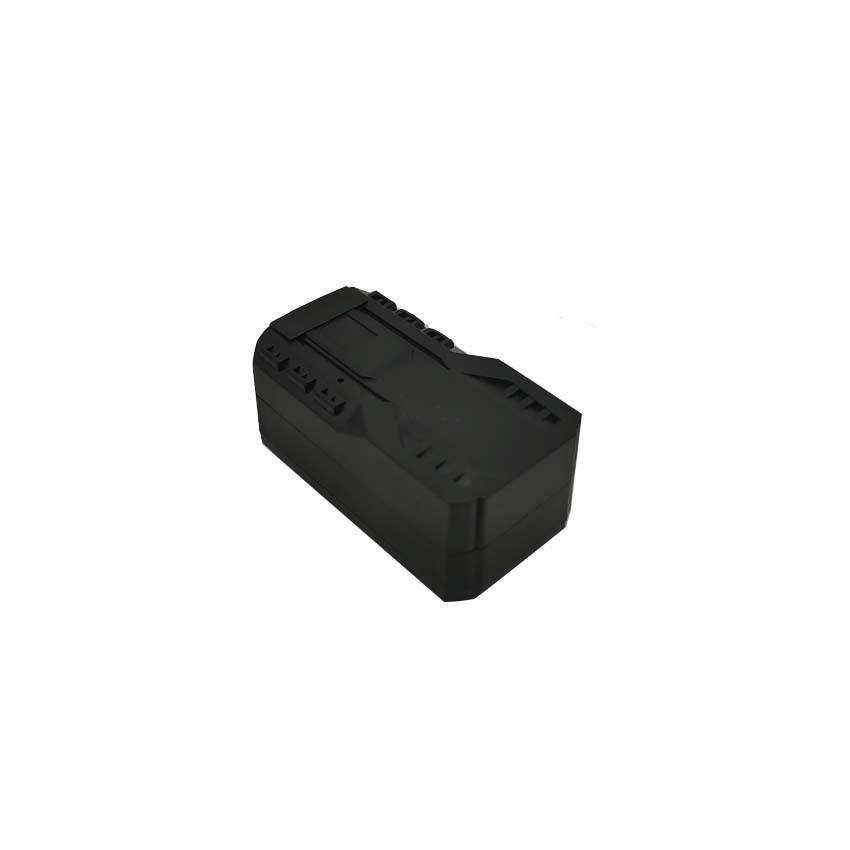

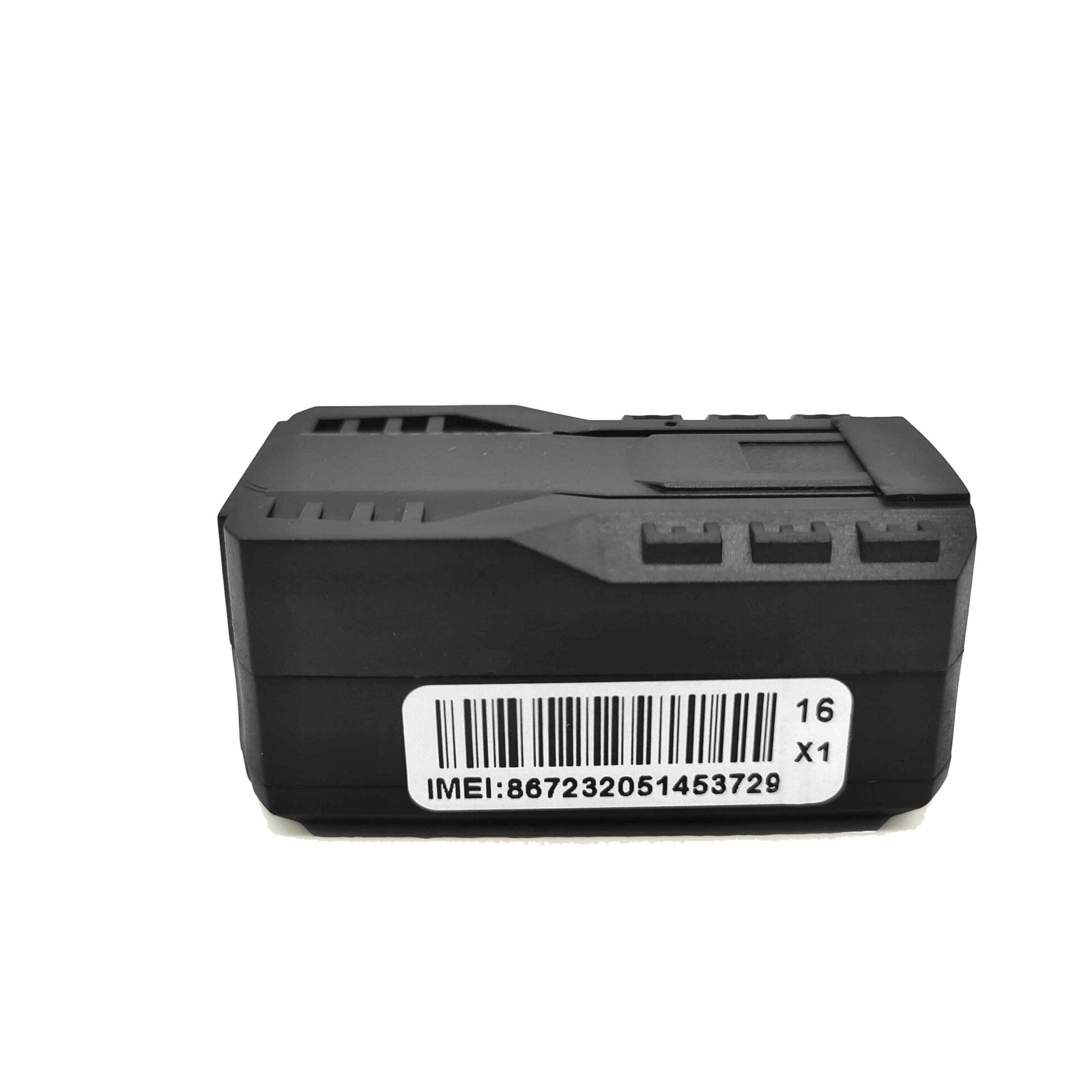

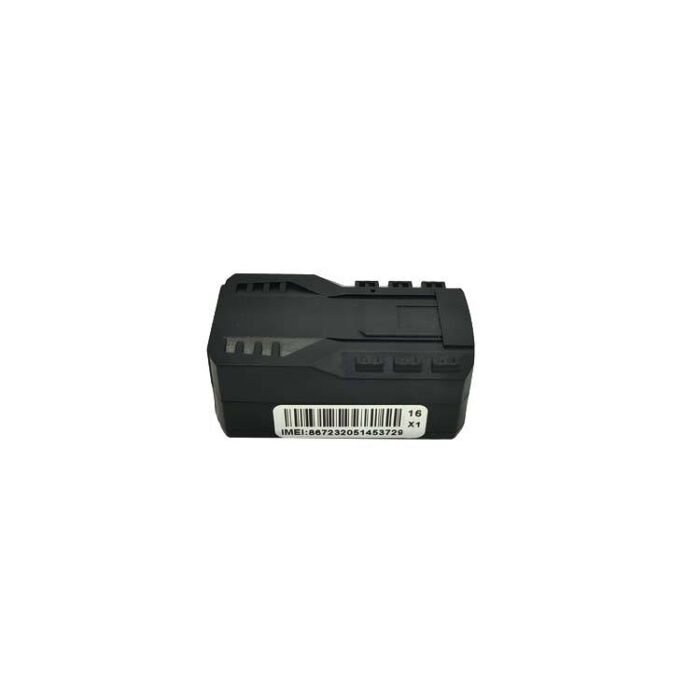

• This is a Small Magnetic real time GPS Tracker with audio which can be used to track someone covertly or without their knowledge. this device supports a internal battery with backup of 2-3 days with Realtime time tracking. This device need a Prepaid GSM Sim card like VI or Airtel. We Sold GPS Devices pre-activated on our customised GPS Tracking Platform with User Id & Password which is Free to use for 1 year. We don’t use Chinese tracking Application which does not work most of the times. If you have purchased multiple devices we can integrate them in a Single Account.

What is GPS Tracking?

• GPS Tracking refers to a Global Positioning System. It entails a network of 24 satellites in orbit and devices on the ground that can establish a person or object’s location on Earth with astonishing precision. GPS Tracking tracks three separate data sets: positioning, navigation, and timing.
• Today’s GPS technology has become a big part of modern life and GPS tracking is a process at the heart of any vehicle tracking system. You likely encounter this sort of technology at work and in your daily life, but do you really understand it? And do you know how to make the most of GPS tracking to boost your commercial fleet’s efficiency and safety records?

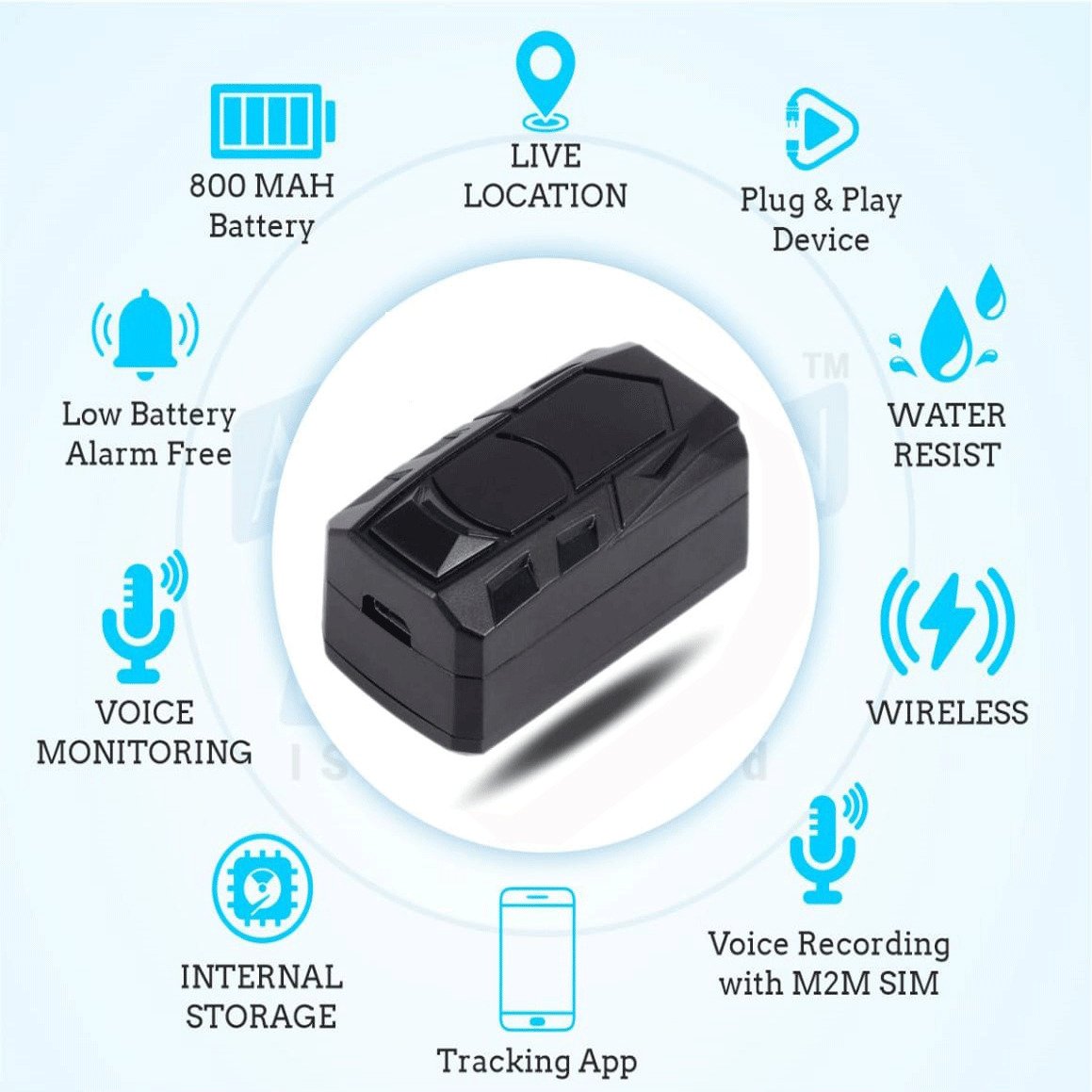

Main Features

• Real GPS+LBS+AGPS Tracking (real time GPS Tracker)
• Strong magnet design
• Accurate tracking via SMS/Platform/APP
• Geo-fence/Low battery alarm
• Vibration alarm
• Voice listen/Voice recording
• Power saving mode
• Support memory storage when GSM lost

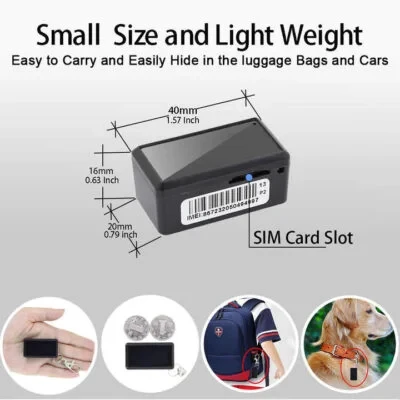

• Small size and lightweight, easy to carry.
• Perfect for tracking vehicles, Kids, Elderly persons or assets.
• 800mAh battery
• Standby Time: 12 days
• Working Time: 2 – 3 days

 Power ON/OFF

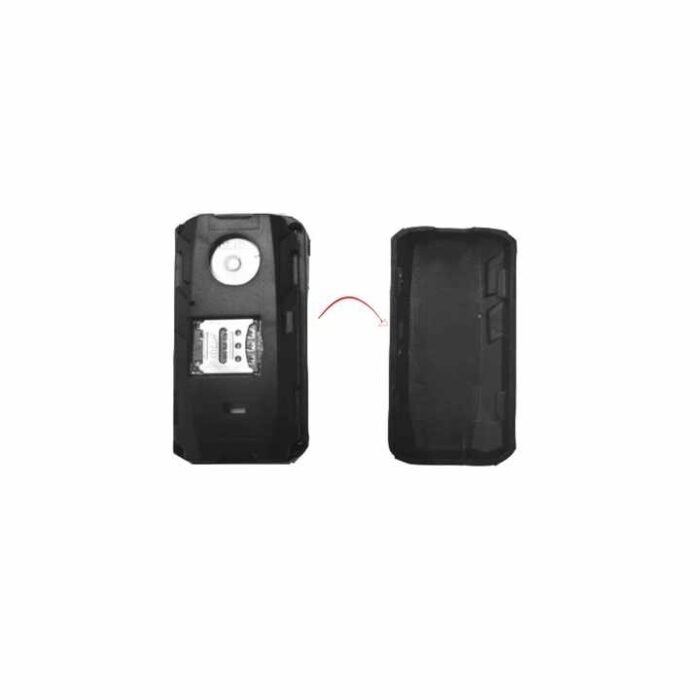

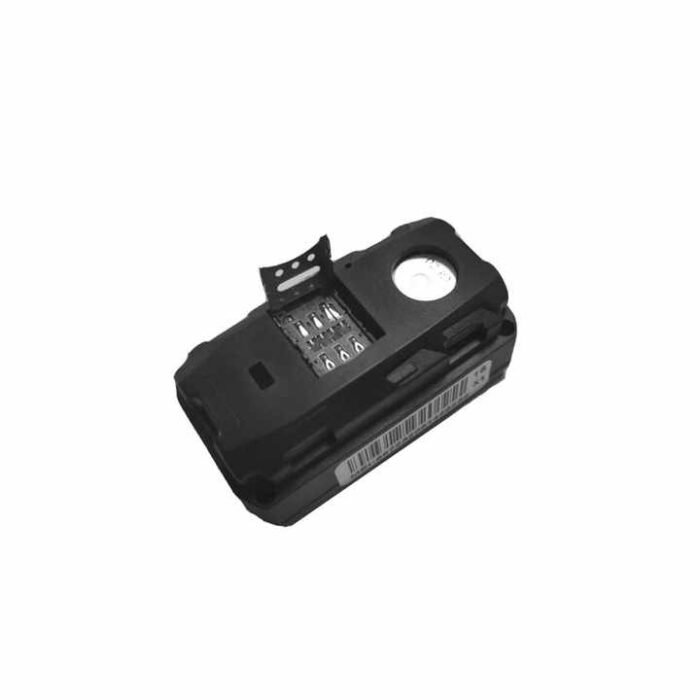

• Insert 2G GSM SIM Card (Nano size) with GPRS data service activated to turn on the gps tracker.
• When insert SIM card device will power on automatically, take out SIM card then device will power off.
• Power saving working mode: Moving status: update new location at every 1 minute; No movement: stop updating location, show last position place.

 Voice Recording (support APP only)

• Check from APP command click “voice recording” function, need wait 1~3minutes finish loading to APP and then hear the voice replay.

 Intelligent Working Modes

Mode 0：(Real-time mode)

Send SMS: “MD,0#“, it will reply “MD, set successfully”, and the device will switch to real-time tracking mode

* Note: GPS always ON and connected with server, consume battery very fast!

•  Mode 1：(Power saving mode)

Send SMS: “MD,1,work time,8,sleep time,40,8,180#“, it will reply “MD, set successfully

For example, send SMS command: “MD,1,3,8,1092,40,8,180#” 2nd “3” means: work time, unit: minute 4th “1092” means sleep time, unit: minute; Only yellow part value could be set, other value keep same as command example.

* Note: device only sleep not power off, support alarms/voice listen.

•  Mode 2：(Clock mode)

Send SMS: “MD,2,work time, power off time#”, it will reply “MD, set successfully

For example, send SMS command “MD,2,3, 3:00,14:00#” Device will keep always power off sleep mode, only when 3:00 and 14:00 every day, device will wake up and work 3 minutes, and power off again enter sleep.

* Note: device will power off, not support alarms/voice listen.

•  Mode 3：(Interval mode)

Send SMS: “MD,3,work time, power off time#”, it will reply “MD, set successfully

For example, send SMS command “MD,3,3,120#” It will power off 120 minutes when it is static status, after 120 minutes, device will wake up and work 3 minutes.

* Note: device will power off, not support alarms/voice listen.

Specifications:

•  Model: SW-GTGF20
• Working Frequency: 850/900/1800/1900 MHz
• GPS/GSM chipset: MTK high sensitivity chip
• Tracking sensitivity: -165dBm
• Location accuracy: <10 meters CEP
• Time to First Fix: (open sky)
• Cold status <35s
• Hot status <1s
• Battery Capacity: 800mAh
• Working voltage: 5VDC
• Operating temp.: -20°C to +65°C
• Standby & Working consumption: 5mA~50mA
• Dimension: 50mm*27mm*25 mm
• Weight: 39g
